Acrel-3000电能管理系统在飞利浦电子技术有限公司的应用
摘要：本文主要介绍了飞利浦电子技术（上海）有限公司采用安科瑞智能电力仪表及Acrel-3000电能管理系统对配电监测系统进行改造，通过总线型组网方式，把数据上传至后台，进行智能化组网。系统实现了分散式采集和集中控制管理的智能化、数字化、网络化电能管理。
Abstract: This article introduces the application of Acrel-3000 power management system in the power distribution monitoring system.Through the bus-type networking mode, the data is uploaded to the background for intelligent networking. The system realizes the intelligent, digital and networked electric energy management of distributed collection and centralized control management.
1.项目概述：
Project Overview
飞利浦电子技术有限公司电能管理系统针对高、低压配电监测改造设计，通过Acrel-3000电能管理系统，为用户提供一套先进、实用的用电管理、分析工具。提供实时及历史数据分析、对比功能，以发现能源消耗过程和结构中存在的问题，建立企业能耗评估、管理体系，实现合理用电、节约用电，提高企业能源效率水平。
The Electric Energy Management System of Philips Electronic Technology Co. , Ltd. is designed for high and low voltage power distribution monitoring. Acrel-3000 electric energy management system provides users with a set of advanced and practical electric power management and analysis tools. The function of real-time and historical data analysis and comparison is provided to find out the problems existing in the process and structure of energy consumption, to establish the evaluation and management system of energy consumption of enterprises, to realize rational and economical use of electricity and to improve the level of energy efficiency of enterprises.
2.Acrel-3000电能管理系统介绍
ACREL-3000 power management system Introduction

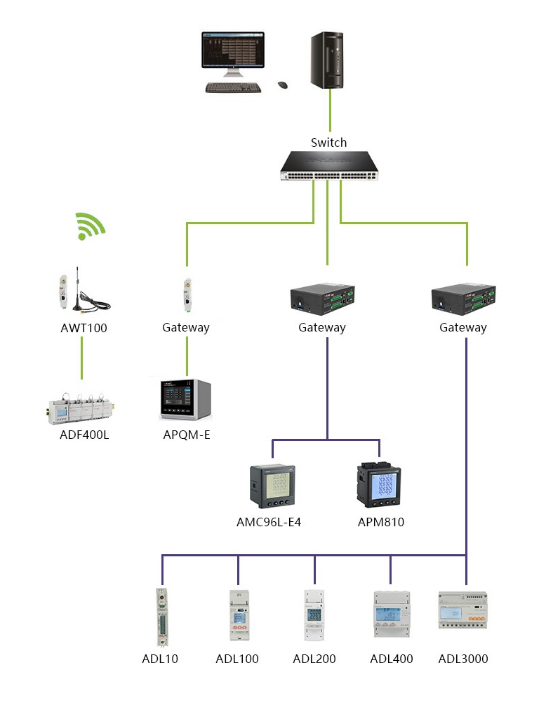

Acrel-3000型电能管理系统对变配电系统进行分散数据采集和集中监控管理。对配电系统的二次设备进行组网，通过计算机和通讯网络将分散的配电所的现场设备连接为一个有机的整体，实现电网运行的远程监控和集中管理。
Acrel-3000 energy management system provides decentralized data acquisition and centralized monitoring and management of the substation and distribution system. It networks the secondary equipment of the power distribution system, connects the field equipment of scattered substation into an organic whole through computer and communication network, realizes remote monitoring and centralized management of grid operation.
3.系统功能
Functions

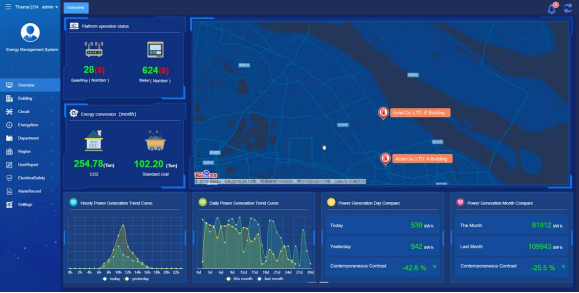

Overview of Energy Consumption
Statistics of Energy Consumption

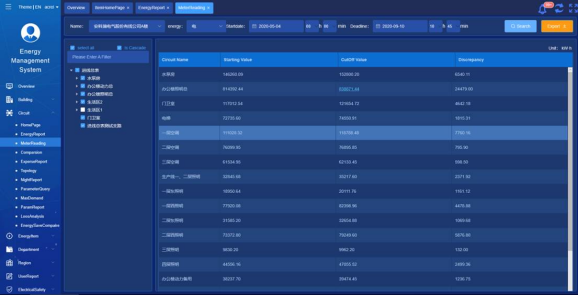

Data Reading

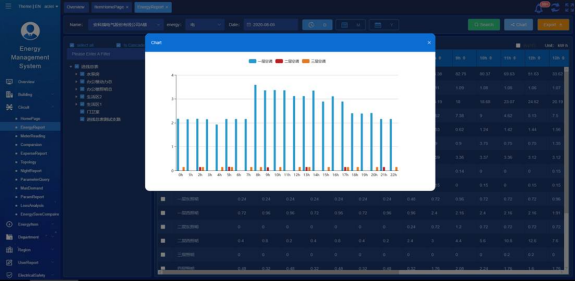

Analysis Report

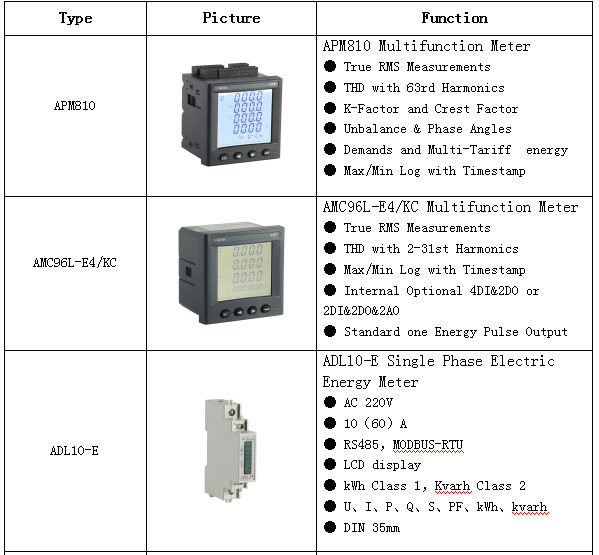

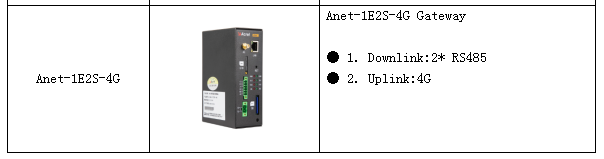

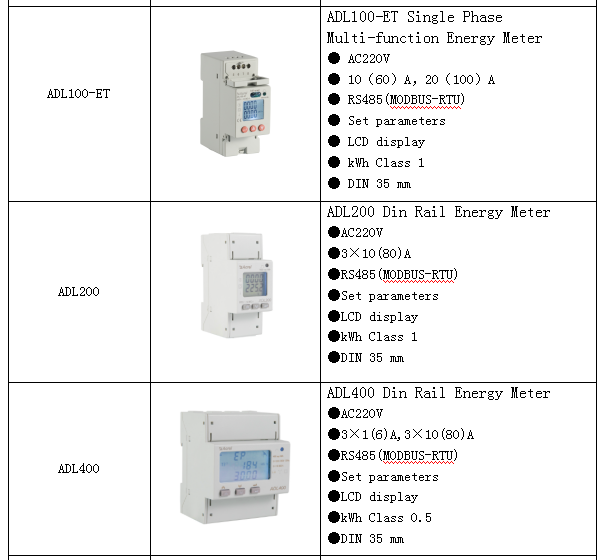

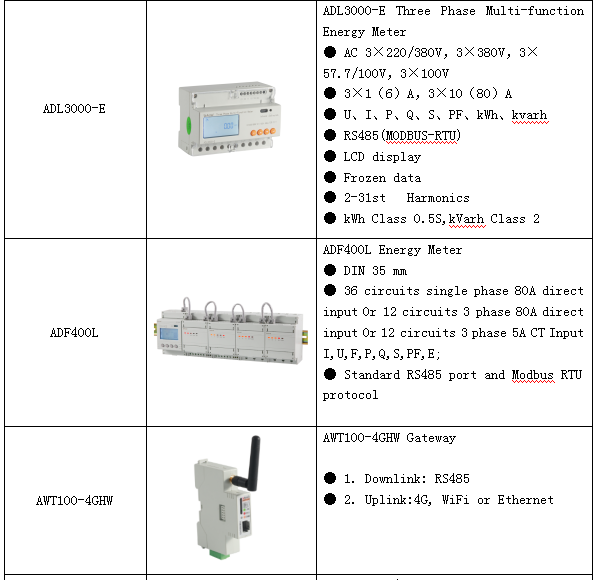

4.产品选型
Product Introduction
5.项目小结
Project Summary
在当今配电设施的应用中，项目的配电安全性至关重要，本文介绍了Acrel-3000电能管理系统可以实现对配电室供配电回路用电的实时监控，不仅能显示回路用电状况，还具有网络通讯功能，可以与串口服务器、计算机等组成电能管理系统。系统实现对采集数据的分析、处理，实时显示配电室内各配电回路的运行状态，对负载越限具有弹出报警对话框、语音提示，并生成各种电能报表、分析曲线、图形等，便于电能的远程抄表以及分析、研究。该系统运行安全、可靠、稳定，为工业项目解决用电问题提供了真实可靠的依据，取得了较好的效益。
It is paramount important that the safety of the projects in the application of power distribution facilities.This article introduces the application of Acrel-3000 energy management system can realize real-time monitoring of power supply and distribution circuits in power distribution rooms.It can not only display the power consumption status of the loop, but also has the function of network communication, and can form an electric energy management system with serial server, computer, etc.The system realizes the analysis and processing of the collected data, real-time display of the operation status of the distribution circuits in the distribution room, pop-up alarm dialog, voice prompt for load exceeding limits, and generates various electric energy reports, analysis curves, graphics, etc., which is convenient for remote meter reading, analysis and research of electric energy.The system is safe, reliable and stable in operation, providing a true and reliable basis for industrial projects to solve power problems, and has achieved good benefits.
6.现场图片
Field picture
