安科瑞无线测温产品在北京大兴国际机场的应用

Abstract: With the development of the electrical industry, the requirements for the safety and reliability of equipment are getting higher and higher. Under this condition, a wireless temperature measurement system for high-voltage equipment came into being. It is to install temperature sensors with batteries or CT powered at each temperature measurement point. The sensor sends the temperature measurement data to the receiving unit, and the receiver can be connected to the system to realize the electrical temperature monitoring. This article introduces the application of Acrel wireless temperature measurement products in Beijing Daxing International Airport.



关键词：无线测温传感器，无线测温系统，高压柜

Keywords: Wireless Temperature Sensor, Online Temperature Monitoring System, High-voltage Switchgear

　　

1.Project Overview项目概述

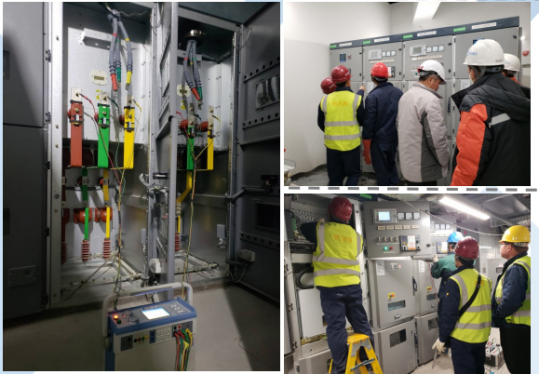

　　北京大兴国际机场建设在北京市大兴区与河北省廊坊市广阳区之间，是超大型国际航空综合交通枢纽。该机场航站楼高压变电站分为三个部分：开闭站，指廊和核心区，其中，开闭站包括116面高压柜，指廊包括40面高压柜，核心区包括80面高压柜，以及其他配电部分包括430面高压柜。安科瑞为其提供了无线测温解决方案，每面高压柜断路器上下触头、电缆接头9点测温，共668面高压柜，无线测温传感器共计6015点。每面高压柜安装一台ASD320智能操控装置。

　　As a large international transportation hub, Beijing Daxing International Airport is located between Beijing Daxing District and Guangyang District, Langfang City, Hebei Province. The airport terminal high-voltage substation includes 668 high-voltage cabinets. Acrel provided it with a wireless temperature measurement solution. The upper and lower contacts and cable joints of each high-voltage cabinet were tested at 9 points. There were a total of 6015 wireless temperature sensors. At the same time, it should be installed an ASD320 intelligent control device on each high-voltage cabinet.



2.Introduction of Wireless Temperature Measurement Products无线测温产品介绍

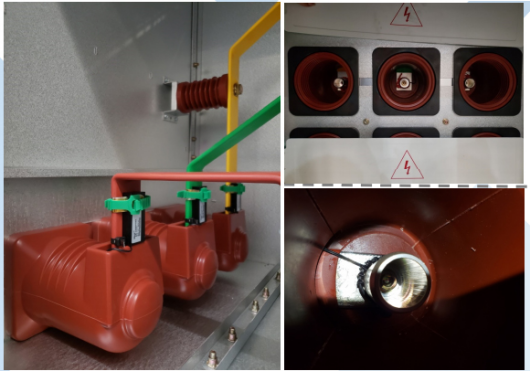

　　电气接点无线测温产品适用于中低压开关柜内电缆接头、断路器触头、铜排，室内桥架、电缆，以及设备表面等场所的温度监测，及时、持续、准确反映设备运行状态，提高设备保障。

　　Wireless temperature measurement products are suitable for temperature monitoring of cable joints, circuit breaker contacts, copper bars, cables, and equipment surfaces in medium-voltage and low-voltage?switchgear, and reflect the operating status of equipment in a timely, continuous and accurate manner to improve the safety on equipment.



3.Introduction of Acrel Wireless Temperature Measurement Solution安科瑞无线测温解决方案介绍

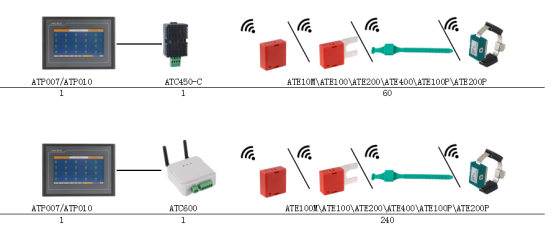

3.1 Solution for High-voltage and Low-voltage Switchgear (With display)

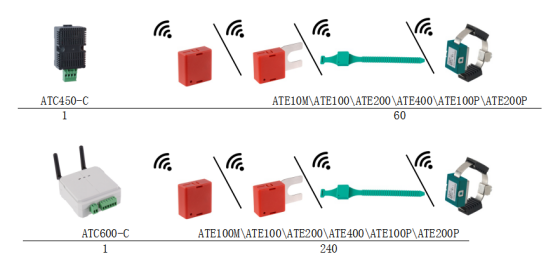

3.2 Solution for High-voltage and Low-voltage Switchgear (Without display)



3.3 Solution for High-voltage and Low-voltage Switchgear (With display)
