安科瑞无线测温设备在挪威某项目的应用

摘要：安科瑞无线温度设备装置通过无线温度收发器和各无线温度传感器直接进行温度值的传输，并采用液晶显示各无线温度传感器所测温度。

Absrtact:Acre wireless temperature device directly transmits the temperature value through the wireless temperature transceiver and each wireless temperature sensor, and adopts LCD to display the temperature measured by each wireless temperature sensor.

1.项目概述  Project Overview

　　挪威某项目需要一批易于安装，通信简单，多点位测量，不需要布线并且能够联网通讯的测温设备。多方比较后，我司无线测温完全能够满足其要求。

　　A project in Norway required a batch of temperature measuring equipment with easy to install, simple communication, multi-point measurement, no wiring and internet  communication.After multi-party comparison, our wireless temperature measurement can fully meet its requirements.

2.产品介绍 product presentation

　　安科瑞无线温度系统适用于3-35kV的室内开关设备，包括内置开关设备、手推车开关设备、固定开关设备和环网开关设备。也适用于0.4kV低压开关柜，如固定开关柜和抽屉开关柜。无线温度传感器可以安装在开关柜的任意加热点，该设备利用无线数据传输技术实时传输监测温度数据，并在ARTM-Pn本地显示。此外，它还可以通过RS485端口联网，以进行远程智能监控。

　　Acrel wireless temperature system is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears. The wireless temperature sensors can be installed at any heating point in switchgears, the device utilizes the wireless data transmission technology for real-time transmission of monitored temperature data and displays such data on ARTM-Pn locally. In addition, it can be networked via the RS485 port for remote intelligent monitoring.

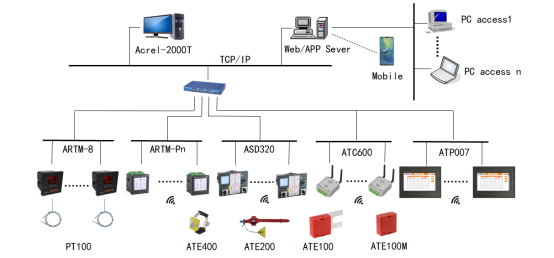

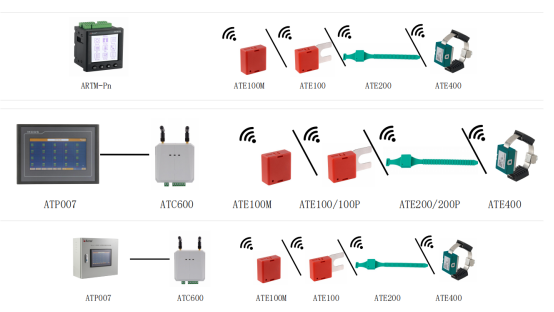

2.1.组网拓扑图 Network Topology

Picture 1

 Picture 2

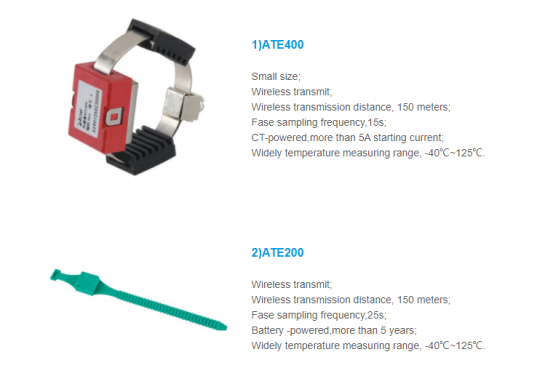

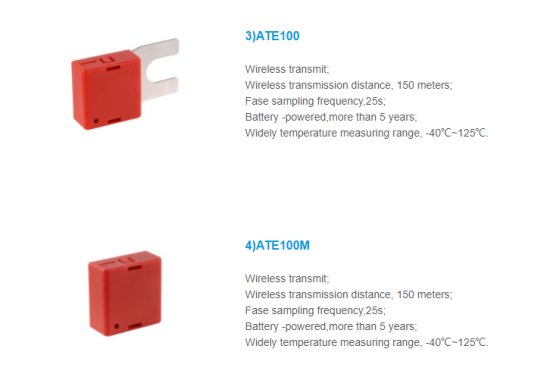

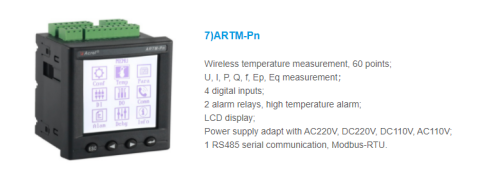

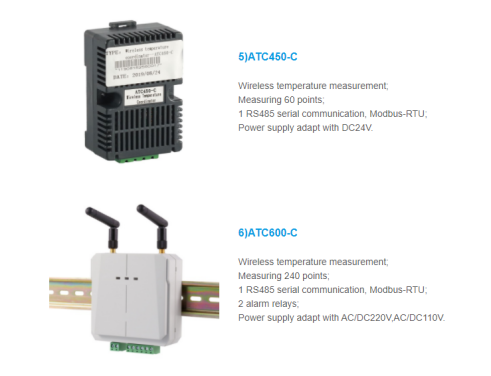

2.2相关产品 related products

More details refer to

https://www.acrel.us/acrel-electric-co-ltd-wireless-temperature-monitoring-system-and-sensors-16125031883214322.html

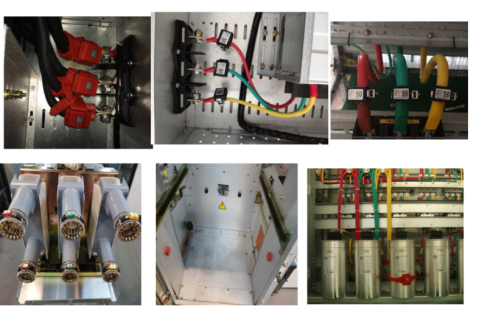

3.安装图片Installation Picture
